 CONSTRUCTION: GS 4200 Pure PTFE Sheet

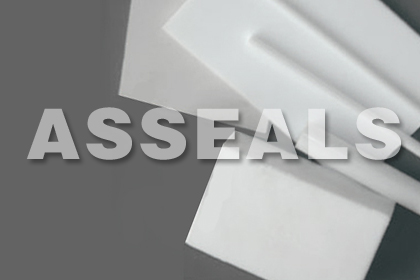

Asseals PTFE product includes sheet, Tube (TU7108), Rod (TO7110), Film (TA7104) and gaskets etc., they are molded, skived or cut from 100% virgin PTFE. It has the best chemical corrosion resistance among known plastics. Without being aging, lowest friction coefficient, wear resistance. The unloaded operating temperature range is -180~+260℃.
GS 4200F Filled PTFE Sheet
The filled PTFE products are molded PTFE resin mixed with the most frequently used filler materials such as glass fiber, carbon fiber and graphite etc. The filled PTFE has improved compression strength, better abrasion resistance, high thermal conductivity and lower thermal expansion compared with pure PTFE products.
PROPERTIES & APPLICATION:
|
Style |
Products |
Tensile Strength |
Pressure
Mpa |
Density
g/cm3 |
Temperature
℃ |
|
4200M |
PTFE Molded Sheet |
15Mpa |
10 |
2.1~2.3 |
-100 ~ 250 |
|
4200S |
PTFE Skived Sheet |
15Mpa |
10 |
2.1~2.3 |
-100 ~ 250 |
|
4200F |
Filled PTFE Sheet |
10Mpa |
16 |
2.1~2.3 |
-100 ~ 260 |
|
4202 |
EPTFE sheet |
According to manufacturer |
Seal materials, electrical insulation parts, lining, oil less lubricating materials etc.
NORMAL DIMENSION:
|
Size(mm) |
Thickness(mm) |
tolerance |
|
150X150 |
1.0~30 |
±0.30~±0.50 |
|
250X250 |
1.5~30 |
±0.30~±0.50 |
|
300X300 |
1.5~30 |
±0.30~±0.50 |
|
450X450 |
1.5~30 |
±0.30~±0.50 |
|
600X600 |
1.5~30 |
±0.30~±0.50 |
|
800X800 |
1.5~30 |
±0.30~±0.50 |
|
1000X1000 |
1.5~30 |
±0.30~±0.50 |
|
1200X1200 |
2~30 |
±0.30~±0.50 |
|
1000X2000 |
3~35 |
±0.30~±0.60 |
|
1500 X 1500 |
3~35 |
±0.30~±0.60 |
|
2000 X 2000 |
5~35 |
±0.30~±0.60 |
CONSTRUCTION:
Asseals 3504 sheet is made from PTFE w/glass microspheres,Improved performance over conventional PTFE, Reduced product loss and emissions. Reduced creep relaxation,Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets, Excellent bolt torque retention..
PROPERTIES & APPLICATION:
|
ASSEALS Style |
3504 |
|
Color |
Blue with black brand |
|
Composition |
PTFE w/glass microspheres |
|
Temperature1 Cont.max.
Minimum |
+500oF (+260oC)
-450oF (-268oC) |
|
Pressure, psig
Cont.max.1 (bar) |
12002
(83) |
|
PxT,max.1 1/32ĄŻĄŻ, 1/16ĄŻĄŻ
(0.8mm,1.6mm)
Psig x oF 1/8ĄŻĄŻ
(bar x oC (3.2mm) |
350,0003
(12,000)
250,000
(8,600) |
|
Sealability ASTM Fuel A ml/hr
(ASTM F37B)4 |
0.12 |
|
Gas Permeability cc/min.
(DIN 3535 Part4)5 |
<0.015 |
|
Creep Relaxation %
(ASTM F38) |
40 |
|
Compressibility Range %
(ASTM F 36) |
25~45 |
|
Recovery min. %
(ASTM F36) |
30 |
|
Tensile Strength psi
(N/mm2) (ASTM D1708) |
2000
(14) |
|
Flammability |
Will not support flame |
|
Bacterial Growth |
Will not support |
FORMS OF SUPPLY:
Sheets: Thickness: 1/32ĄŻĄŻ,1/16ĄŻĄŻ,1/8ĄŻĄŻmm
60ĄŻĄŻ*60ĄŻĄŻ 60ĄŻĄŻ*120ĄŻĄŻ
Special sizes,please require.
Cut gaskets ASSEALS 3504CG
Dimensions according to drawings or and standards
GS 4200 Pure PTFE Sheet
Asseals PTFE product includes sheets, rods, tube, tapes and gaskets etc., they are molded, skived or cut from 100% virgin PTFE. It has the best chemical corrosion resistance among known plastics. Without being aging, lowest friction coefficient, wear resistance. The unloaded operating temperature range is -180~+260℃.
GS 4200F Filled PTFE Sheet
The filled PTFE products are molded PTFE resin mixed with the most frequently used filler materials such as glass fiber, carbon fiber and graphite etc. The filled PTFE has improved compression strength, better abrasion resistance, high thermal conductivity and lower thermal expansion compared with pure PTFE products.
Application:
Sealing materials, electrical insulating parts, lining, oil less lubricating materials etc.
Main PROPERTIES
|
Style |
Products |
Tensile Strength |
Pressure |
Density |
Size |
|
GS 4200M |
PTFE Molded Sheet |
15Mpa |
10Mpa |
2.1~2.3g/cm3 |
1000mm |
|
GS 4200S |
PTFE Skived Sheet |
15Mpa |
10Mpa |
2.1~2.3g/cm3 |
1200mm |
|
GS 4200F |
Filled PTFE Sheet |
10Mpa |
16Mpa |
2.1~2.3g/cm3 |
1000mm |
|
TU 7108 |
PTFE Tube |
25Mpa |
10Mpa |
2.1~2.3g/cm3 |
φ24~100mm |
|
RO 7110 |
PTFE Rod |
14Mpa |
10Mpa |
2.1~2.3g/cm3 |
φ10~200mm |
More other Asseals PTFE products are available on request. |
